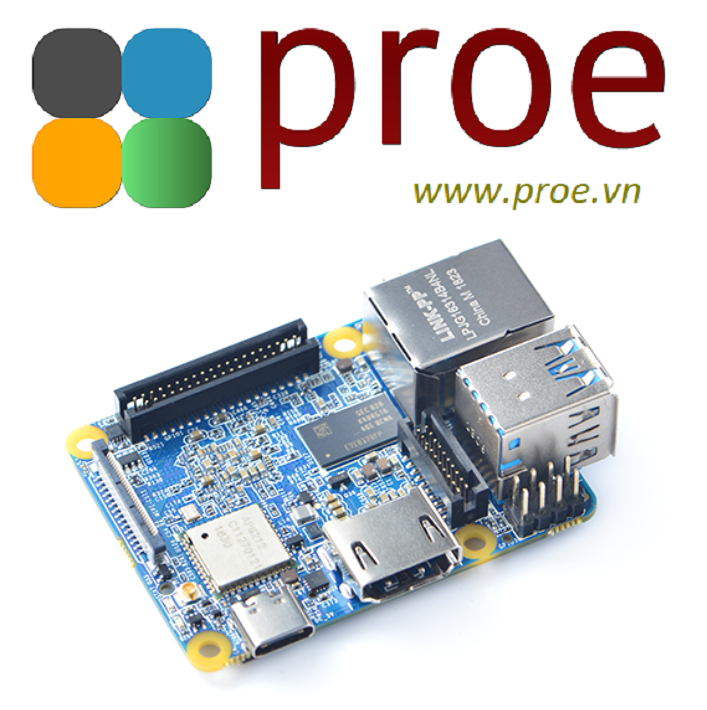

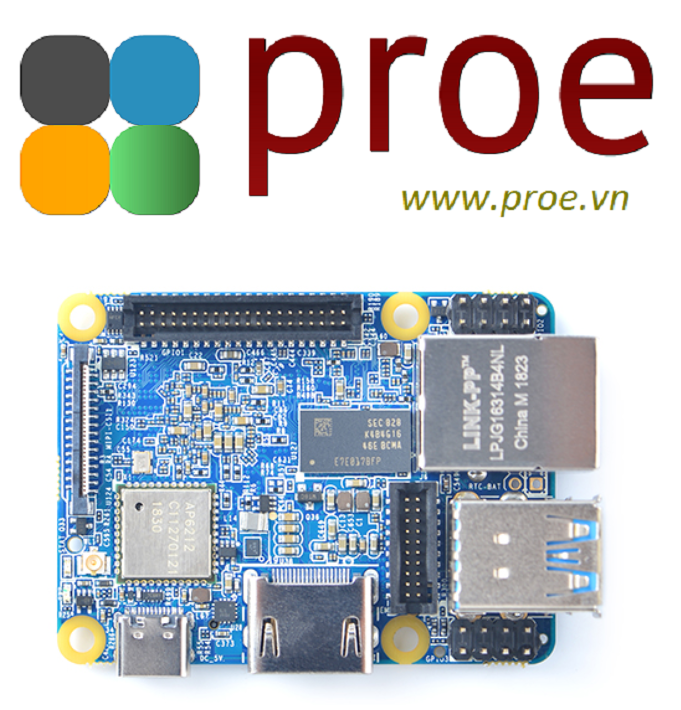

NanoPi NEO4

CPU:

Model: Rockchip RK3399； Number of Cores: big.LITTLE, 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53； Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)

GPU:

Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC

VPU

4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc

DDR3 RAM:

1GB DDR3-1866

Storage:

eMMC: no Onboard eMMC, but has a eMMC socket

USB Host:

USB 3.0*1: USB 3.0 Type-A ports； USB Type-C*1: Supports USB2.0 OTG and Power input； USB 2.0*2: USB 2.0 Host, one is Type-A, the other is 2.54mm header

WiFi:

802.11 b/g/n, Bluetooth 4.0 combo module

Antenna Interface:

Antenna*1: IPX Connector

Audio input/output Port

Video Input: one 4-Lane MIPI-CSI, up to 13MPix/s； Video Output: HDMI*1: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.

microSD Slot:

MicroSD*1 for external storage up to 128GB

LED:

Power LED(Red)*1；GPIO Controlled LED(Green)*1

PCB Dimension:

8 Layer；60*45mm

Power:

DC 5V/3A
