i.MX 8M Plus Evaluation Kit Enabling Power Measurement

The i.MX 8M Plus PEVK provides a platform for comprehensive evaluation of the i.MX 8M Plus Quad/Dual and i.MX 8M Plus QuadLite applications processors. It is fully software compatible with the 8MPLUSLPD4-EVK and includes additional hardware to measure the i.MX 8M Plus SoC power consumption at run time. 8MPLUSLPD4-PEVK could therefore be used as a replacement to 8MPLUSLPD4-EVK.

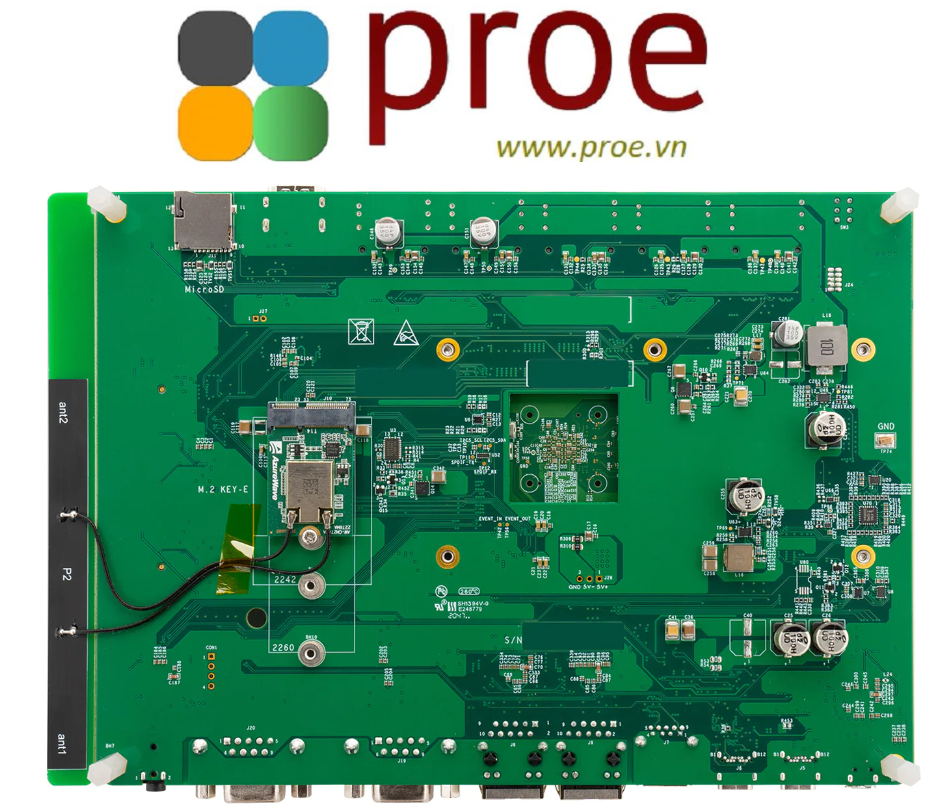

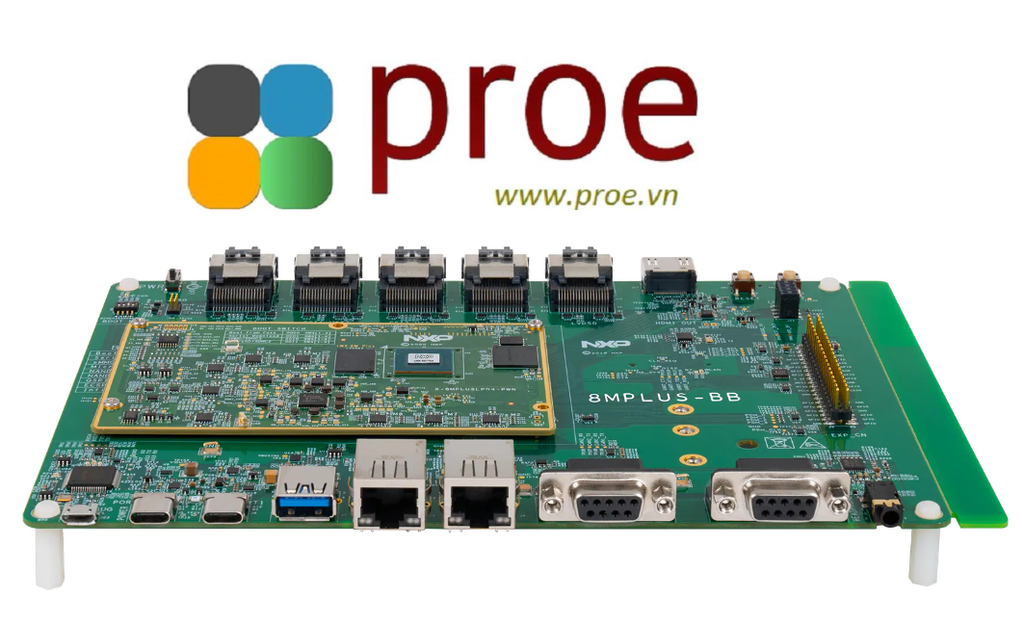

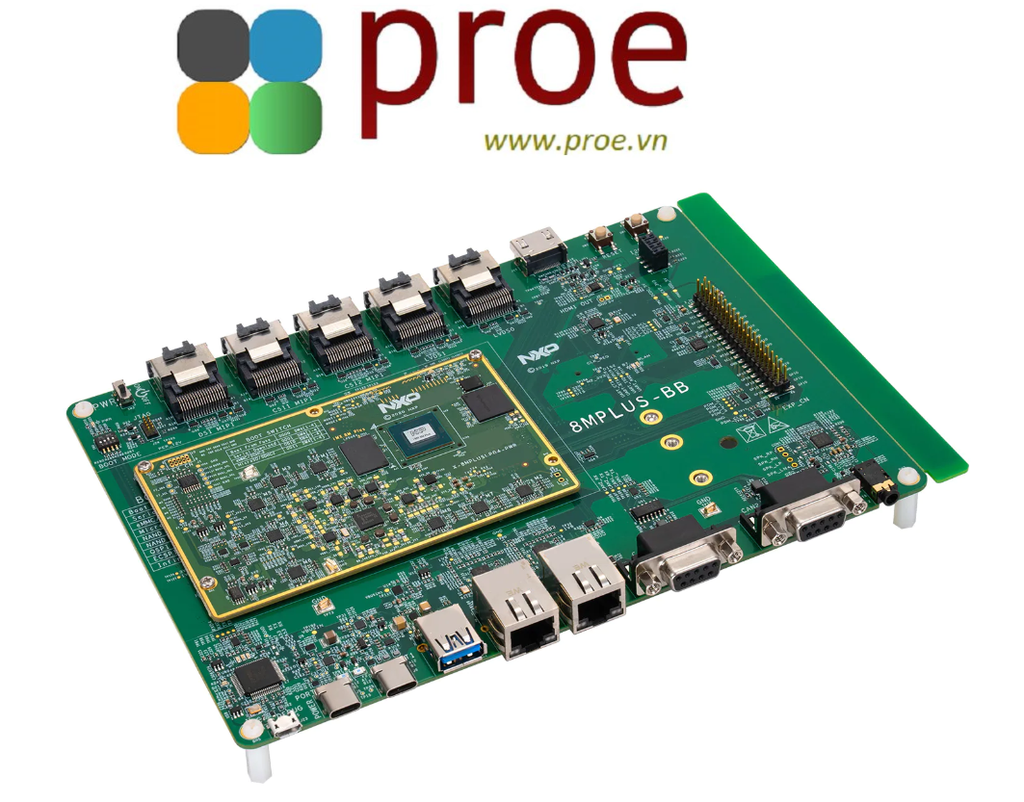

The two-board solution consists of a compute module that contains i.MX 8M Plus SoC, LPDDR4, eMMC, QSPI, PMIC and power monitoring circuits and a base board that brings out the broad connectivity that is needed for product evaluation. It provides an excellent starting point to accelerate your own design.

The power consumption on the various power rails could be measured at runtime by using the following software tools: Board Control Utilities (BCU) and/or Power Measurement Tool (PMT). Please refer to User Guide and Quick Start Guide for more information.

Features

Processor

• i.MX 8M Plus Quad applications processor
• 4x Arm Cortex-A53 up to 1.8 GHz
• 1x Arm Cortex-M7 up to 800 MHz
• Cadence® Tensilica® HiFi4 DSP up to 800 MHz
• Machine Learning (ML) accelerator

Memory

• 6 GB LPDDR4
• 16 GB eMMC 5.1
• 64 MB QSPI Flash

Display and Camera Interfaces

• MIPI-DSI Display Mini-SAS Connector
• LVDS Display Mini-SAS Connector
• 2x MIPI-CSI Camera Mini-SAS Connector

Wireless

• Wi-Fi Type 1MW 802.11 a/b/g/n/ac 1x1

Audio

• Audio DAC
• Microphone/headphone jacks

Connectivity

• 2x 10/100/1000 Ethernet port (1x w/ TSN)
• USB 3.0 Type C for Power
• USB 3.0 Type A
• USB 3.0 Type C
• PCIe M.2 interface

Debug

• JTAG connector

Tools and OS support

• Linux
• Android
• FreeRTOS
