Weight: 0.362 kg

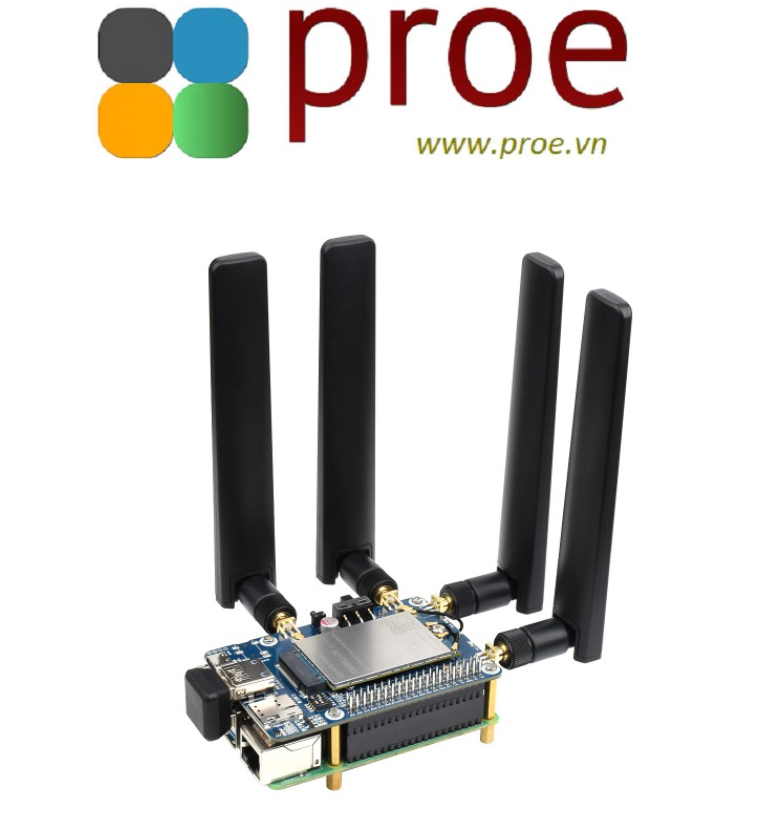

RM500x / RM502x 5G HAT For Raspberry Pi, Quad Antennas LTE-A, Multi Band, 5G/4G/3G Compatible
Raspberry Pi RM500x / RM502x 5G HAT
Supports 5G/4G/3G
Features At A Glance

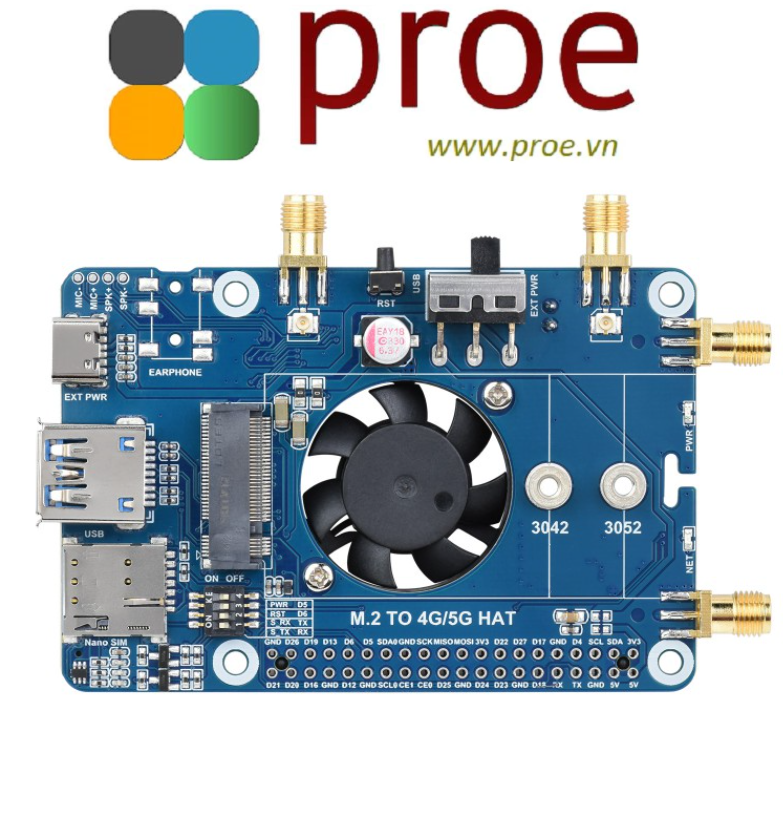

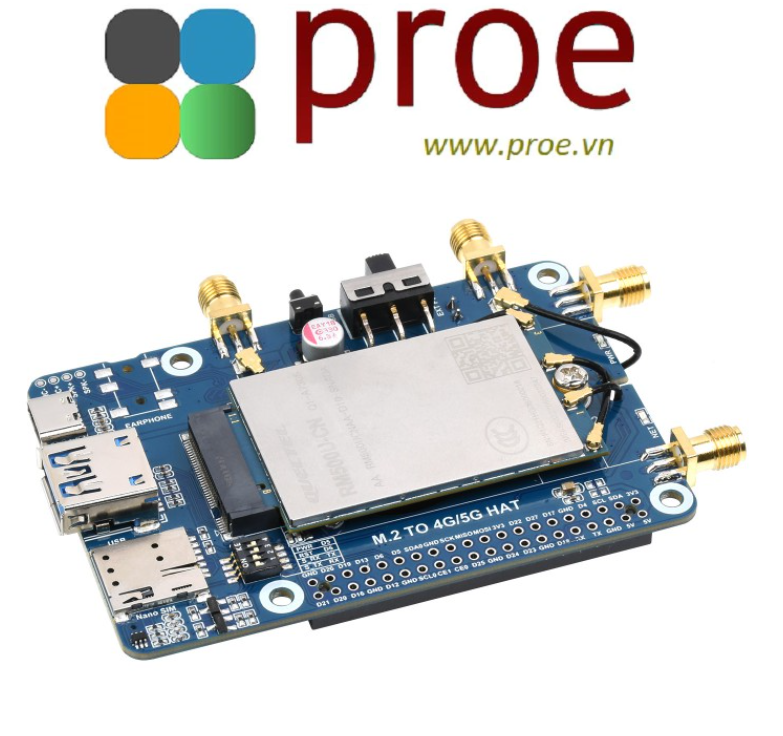

Standard M.2 B KEY Slot
Compatible With RM500U-CN, RM500Q-GL, RM500Q-AE,RM502Q-AE Series Modules
5G SUB-6 | RM500U-CN | RM500Q-GL | RM500Q-AE | RM502Q-AE | |
---|---|---|---|---|---|
Region / Provider | China | Global (except US) | Global (except China) | Global (except China) | |
Operating temperature | -30 °C ~ +75 °C | -30 °C ~ +70 °C | |||
Extension temperature | -40 °C ~ +85 °C | ||||
Dimensions | 30.0 × 52.0 × 2.3 (mm) | ||||
Weight | 8.9 (g) | 8.7 (g) | |||
Power supply | 3.3~4.4 V, typical 3.7 V | 3.135~4.4 V, typical 3.7 V | |||
Power consumption | 90 μA @ shutdown 3.7 mA @ hibernate TBD @ USB 2.0, idle TBD @ USB 3.0, idle |
70 μA @ shutdown 4.0 mA @ hibernate 32 mA @ USB 2.0, idle 54 mA @ USB 3.0, idle |
80 μA @ shutdown 4.2 mA @ hibernate 39 mA @ USB 2.0, idle 54.5 mA @ USB 3.0, idle |
||
FREQUENCY BAND | |||||
5G | 5G NR NSA | n41, n78, n79 | n41, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79 | |
5G NR SA | n1, n28, n41, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48*, n66, n71, n77, n78, n79 | |||
LTE | LTE-FDD | B1, B2, B3, B5, B7, B8, B20, B28 | B1, B2, B3, B4, B5, B7, B8, B12(B17), B13, B14, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | ||
LTE-TDD | B34, B38, B39, B40, B41 | B34, B38, B39, B40, B41, B42, B43, B48 | |||
LAA | - | B46 | |||
UMTS | WCDMA | B1, B2, B5, B8 | B1, B2, B3, B4, B5, B6, B8, B19 | ||
GNSS | - | GPS / GLONASS / BeiDou (Compass) / Galileo | |||
DATA RATE | |||||
5G SA Sub-6 | downlink 2 Gbps; uplink 1 Gbps |
downlink 2.1 Gbps; uplink 900 Mbps |
downlink 2.1 Gbps; uplink 450 Mbps |
downlink 4.2 Gbps; uplink 450 Mbps |
|
5G NSA Sub-6 | downlink 2.2 Gbps; uplink 575 Mbps |
downlink 2.5 Gbps; uplink 600/650 Mbps |
downlink 2.5 Gbps; uplink 650 Mbps |
downlink 5 Gbps; uplink 650 Mbps |
|
LTE | downlink 600 Mbps; uplink 150 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
downlink 1.0 Gbps; uplink 200 Mbps |
downlink 2 Gbps; uplink 200 Mbps |
|
UMTS | downlink 42.2 Mbps; uplink 11 Mbps |
downlink 42 Mbps; uplink 5.76 Mbps |
|||
* means developing/planning/processing |
Supports 5G/4G/3G Networking
Support 5G NSA (4G And 5G Co-Networking) And SA (5G Separate Networking)
Support 4G/3G Internet
* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.
Multi System Support, Easy To Use
Supports Windows / Linux / Android...
Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use
Connection Examples

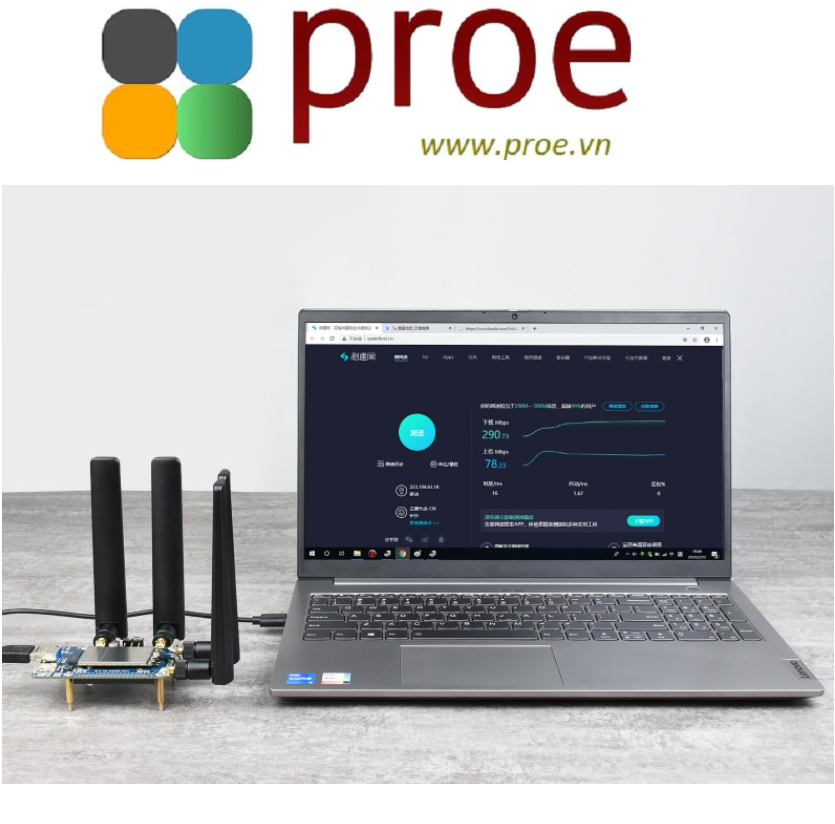

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter
connecting with Raspberry Pi 4B
connecting with Raspberry Pi 3B+
connecting with CM4 IO Base
Cloud Communication
Multi-Constellation High-Precision GNSS
Supports GPS, Beidou, Glonass, Galileo
Note: GNSS is not available for RM500U-CN module.
Standard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs
* for reference only, please check the Package Content section for exact part list.

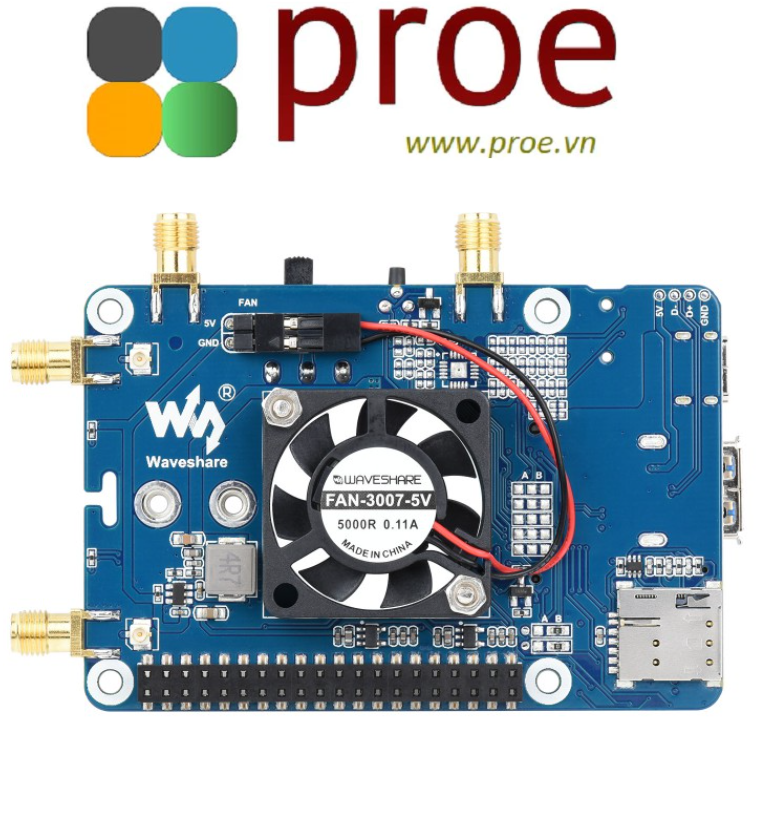

High Speed Cooling Fan
Better Heat Dissipation For Both Raspberry Pi And The 5G Module

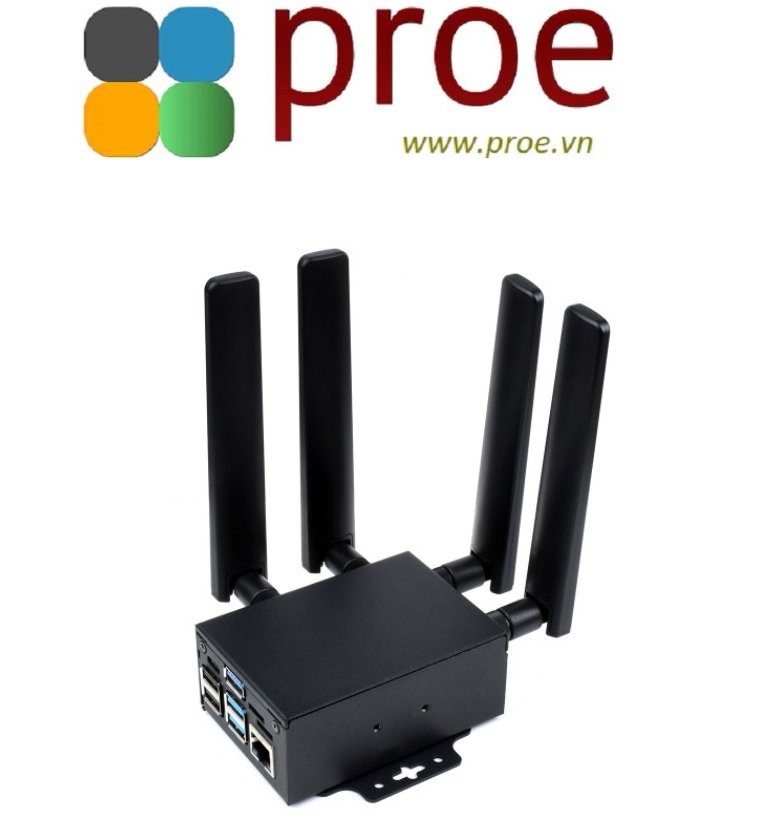

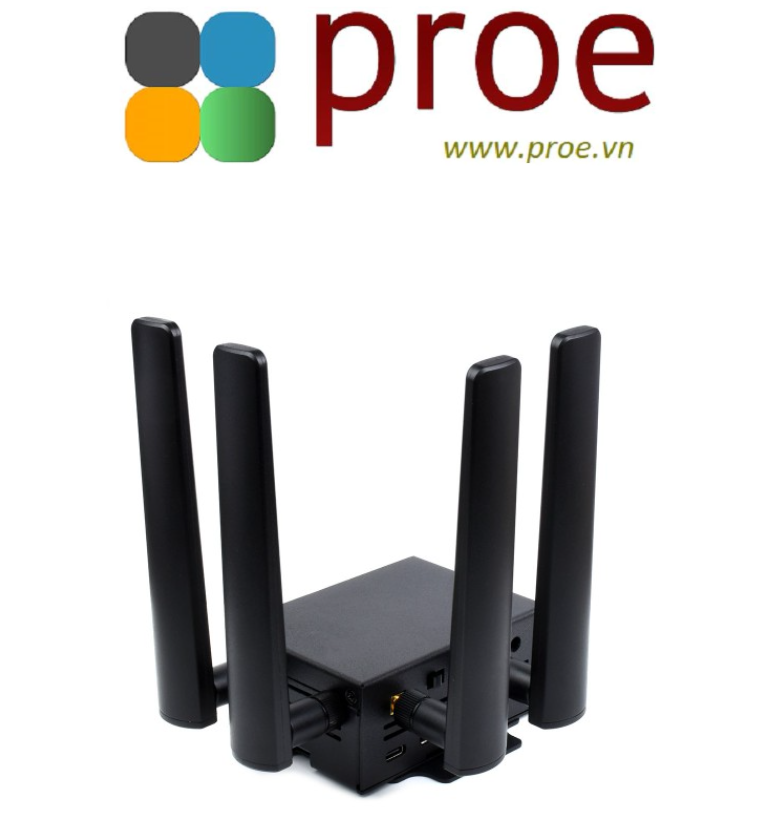

Optional Case
Multiple Installation Methods, Convenient For Various Application Such As Industry
* The case is optional, please choose a proper option before placing order
Application Examples
5G Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a 5G wireless router, providing WiFi hotspot for smartphones to easily access the 5G Network.
5G Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.
More Possibilities
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/RM500U-CN_5G_HAT
Wiki: www.waveshare.com/wiki/RM500Q-GL_5G_HAT
Wiki: www.waveshare.com/wiki/RM500Q-AE_5G_HAT
Wiki: www.waveshare.com/wiki/RM502Q-AE_5G_HAT
